Specifications

Spec Sheet

Specifications:
# of axis: 3
Swing: 21"
Max turning length: 22.5"
Turning diameter: 11.75"
Center distance: 22.5"
Chuck size: 8"
Bar capacity: 2.50"
X axis travel: 8.4"
Z axis travel: 22.5"
C axis index: 0.001 degree
Rapid traverse (X/Z): 945 IPM
Spindle nose: A2-6
Spindle speed: 4,000 RPM
Main motor: 20 H.P.
Live tooling: Yes
Live tooling speed: 4,000 RPM
Tailstock: Yes
Y axis: No
Sub spindle: No
Turret capacity: 12

Equipped with:

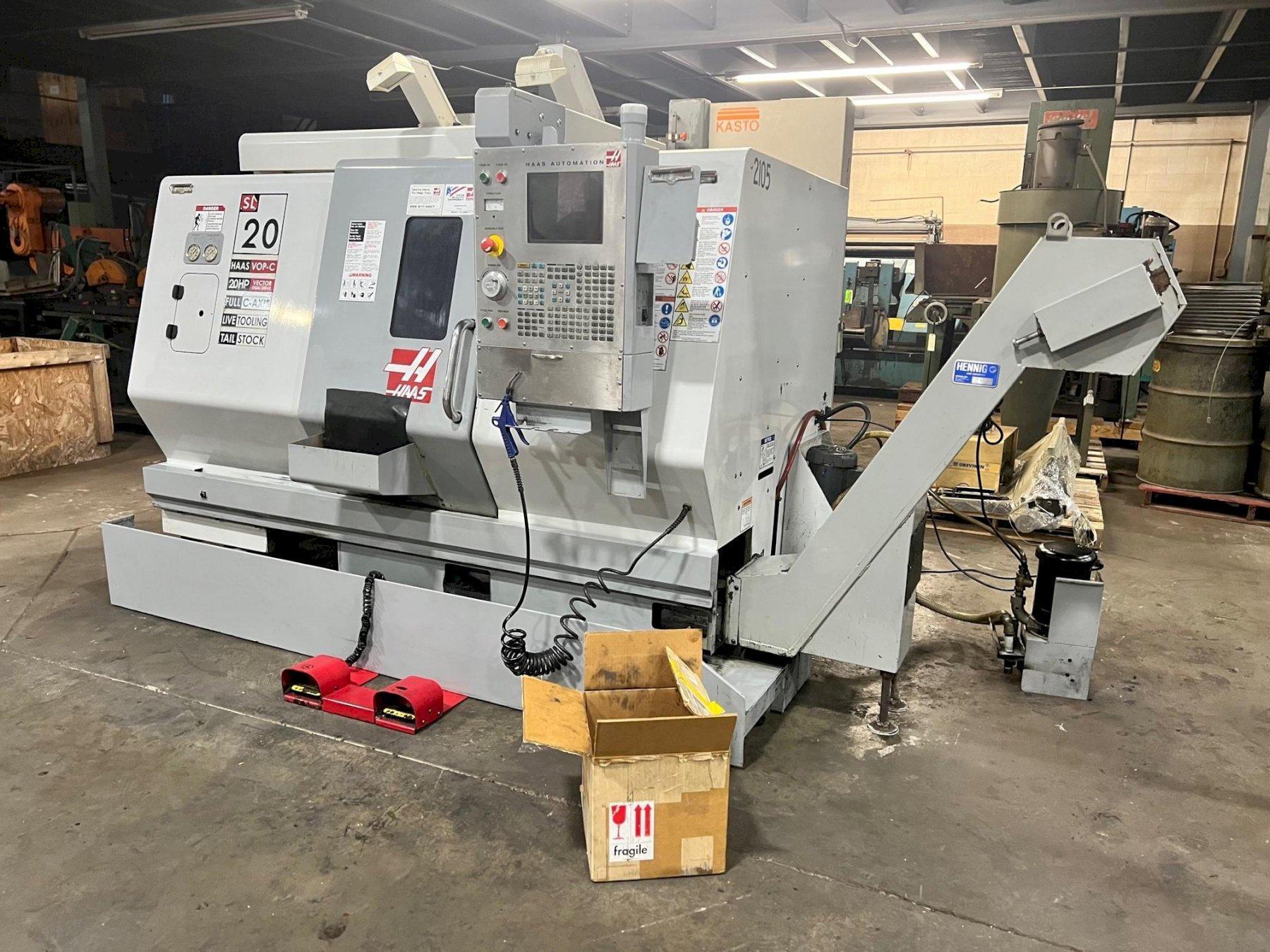

Haas CNC control with USB drive
12 tool turret (6 live tool positions)
4,000 RPM live tooling

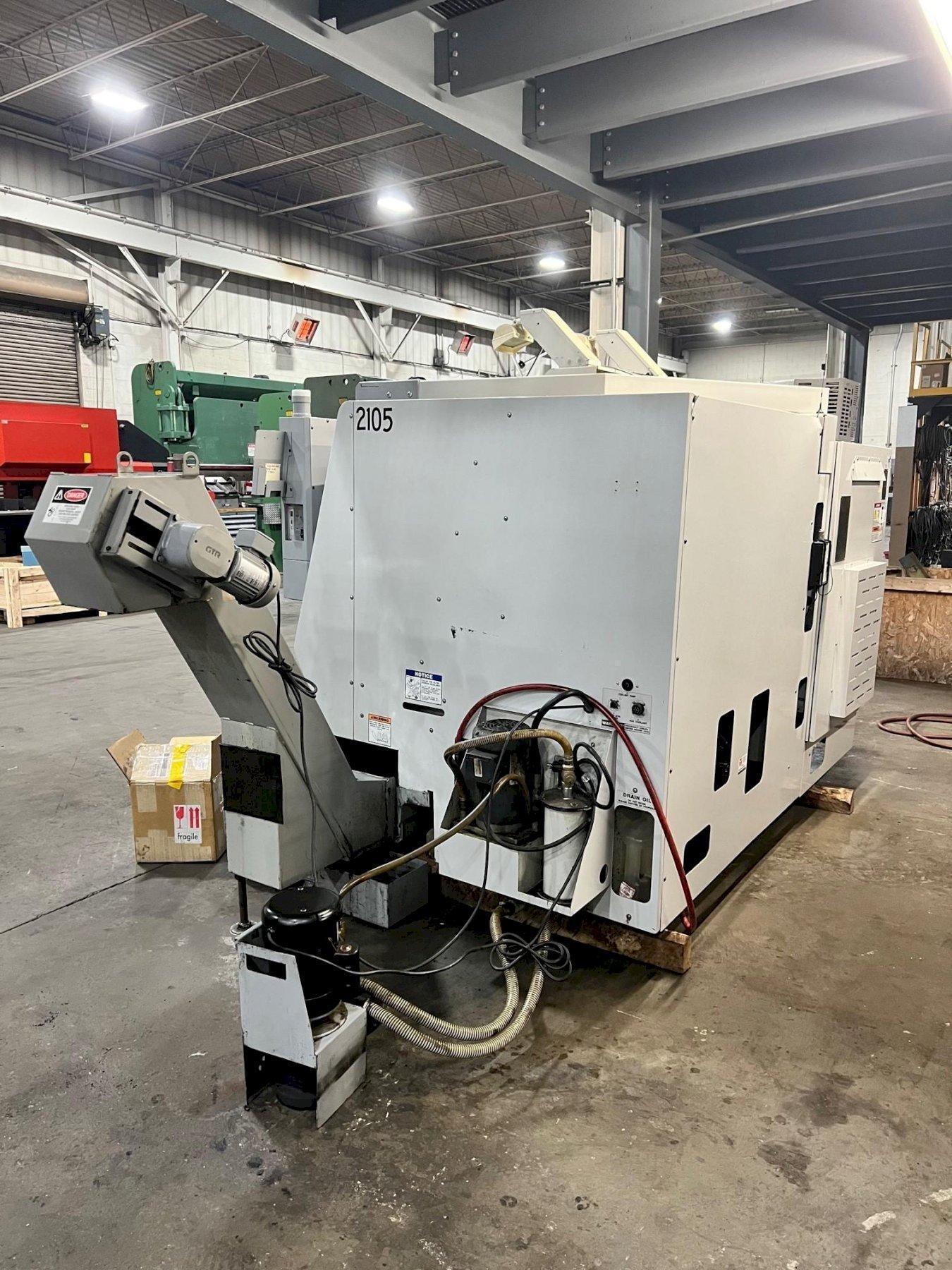

Chip conveyor
Coolant tank
3-jaw chuck
